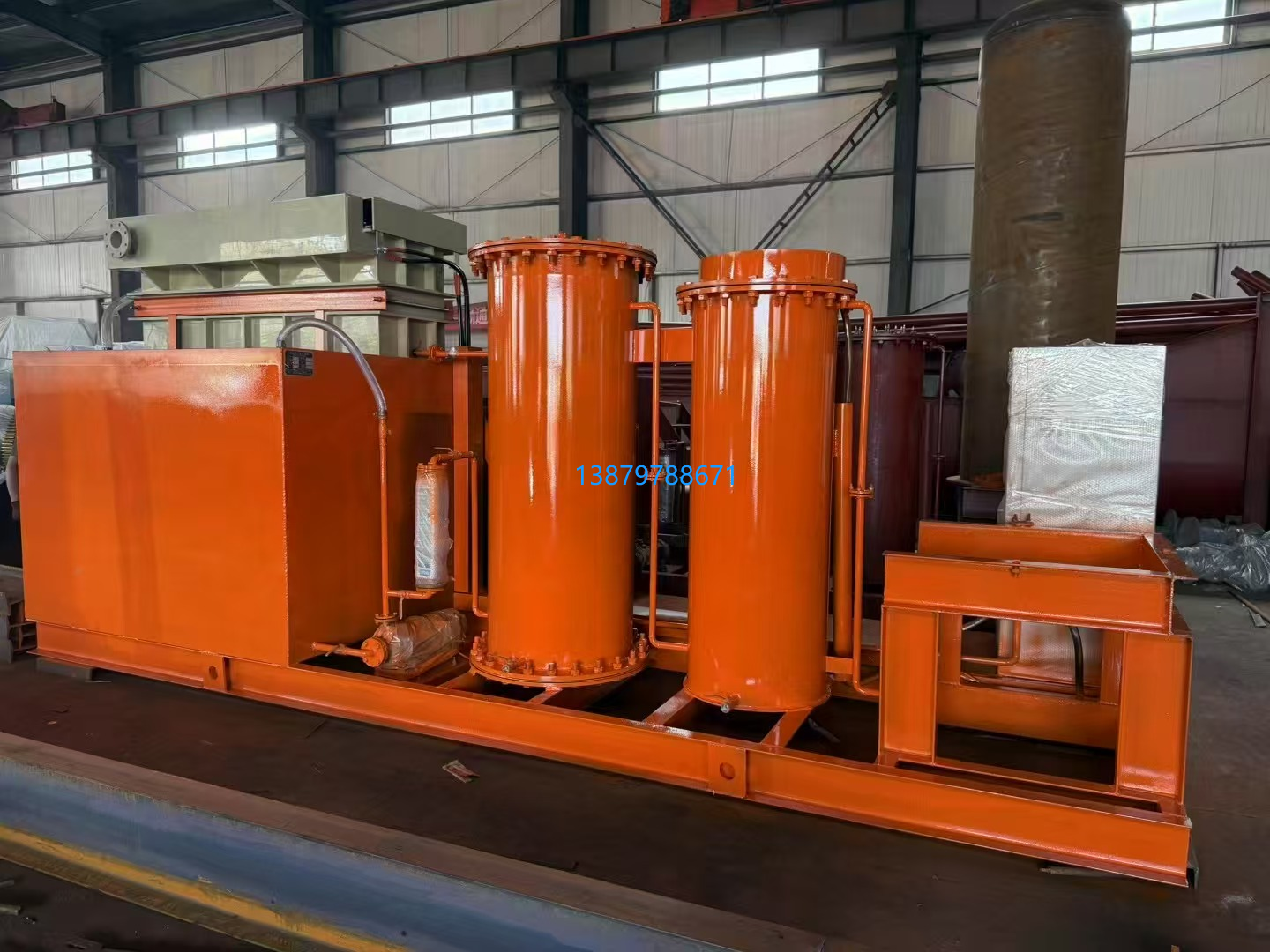

解吸電解成套裝置是金礦氰化—炭漿法提金工藝流程中金銀回收的關鍵設備,我公司新開發的反電解技術可使富集在陰極板上的金泥,直接在電解槽內通過電控系統完成金泥的脫落、收集過程,無需提出陰極板酸洗,有效地防止了金泥流失,提高了電解效率和電解回收率。
Disorption and Electrowinning Set is one of the key facilities of CIP process for gold extraction. Through the inverse electrowinning technology developed by Xinhai, the gold sludge accumulated on the cathode can be directly disorded and collected in the electrolytic cell by means of the electrical control system, without lifting out the cathode for acid-washing. As a result, gold sludge lose is well protected, and hence, electrowinning efficiency and recovery are improved.
裝炭量Loaded carbon rate | 解吸液儲槽容積Disadorption solution tank volumen | 解吸柱規格Disadorption column specifications | 電解槽容積 Electro win-ning chute volume | 電加熱器功率Electrical heater power | 換熱器規格 Fleat exchanger specifications | 日處理量Capacity |
kg/批 | m3 | mm | m3 | kw | mm | t/d |
100 | 2.4 | Φ400×2500 | 0.4 | 24 | Φ400 | 15-25 |
215 | 3.0 | Φ500×2800 | 0.4 | 36 | Φ400 | 25-50 |
430 | 3.6 | Φ600×3800 | 0.6、1.0 | 24×2 | Φ500 | 50-100 |
445 | 3.6 | Φ900×4500 | 0.6、1.0 | 24×2 | Φ500 | 50-100 |
860 | 4.3 | Φ400×430 | 1.0、1.5 | 36×2 | Φ600 | 200-500 |
1200 | 5.0 | Φ500×5000 | 1.0、1.5 | 36×2 | Φ600 | 500-1000 |
