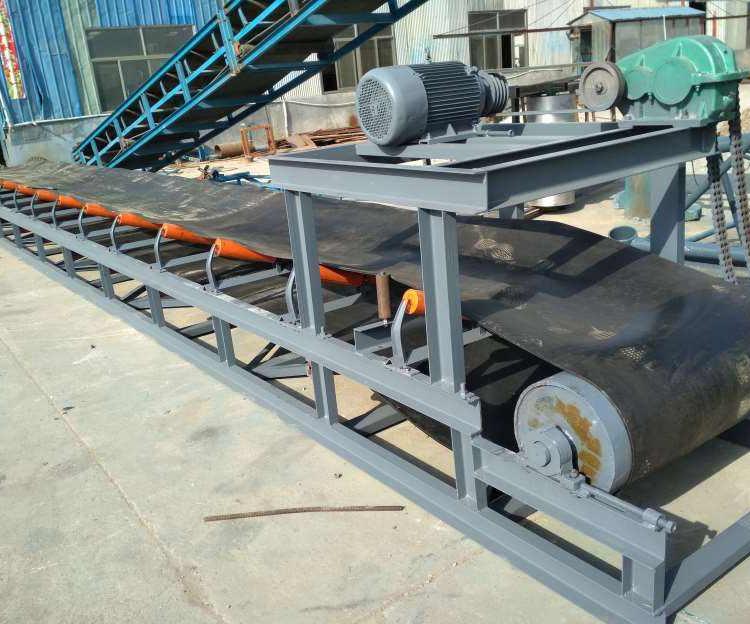

DSP、DSJ、SD、SJ型水平可伸縮帶式輸送機 Extensible Belt conveyor
帶式輸送機是通用型系列產品,以棉帆布、尼龍,聚酯帆布和鋼絲繩芯輸送帶作拽引構件的連續輸送設備,可廣泛用于電力、煤炭、礦山、鋼鐵、建材、化工、煙草、環保、糧食、輕工、石油等眾多行業。輸送松散密度為500-2500kg/m3的各種 散狀、塊狀或成件物品,具有運量大、爬坡能力強、噪音小、維護方便、易損件互換性好等特點,便于實現運輸系統自動化控制,工作環境的溫度為<40℃。
Belt conveyors are universal series products which use cotton canvas, nylon, polyester canvas and steel cord conveyor belts as traction member of continuous conveyor equipment and are widely applied in many industries such as power, coal, mining, steel, building material, chemical, tobacco, environmental protection, grain, light industry and petroleum industry. They convey various kinds of bulk products, massive products and product pieces with bulk density of 500-2,500kg/m3. Their characteristics are great conveyance ability, strong gradeability, low noise, easy maintenance, good interchangeability of easily damaged parts, easy for the realization of automation control of conveying system. Their working temperature shall be lower than 40℃.
型號規格 Model | 運量 capa. | 運距 Max length | 帶寬 Belt width | 帶速Speed | 電機功率 Power | 傳動滾筒直徑 Drum Dia. | 托輥 直徑 Roller Dia. | 整機 質量 Weight |
t/h | m | mm | m/s | kw | mm | mm | t | |
DSP1010/650 | 100 | 1000 | 650 | 1.6 | 40 | 500 | 108 | 57.12 |
DSP1010/650 | 100 | 1000 | 650 | 1.6 | 40 | 500 | 108 | 12.42 |
DSJ65/10/55 | 100 | 1000 | 650 | 2 | 55 | 500 | 108 | 58.83 |
DSJ65/10/2×40 | 100 | 800 | 650 | 2 | 2×40 | 500 | 108 | 50.19 |
SD-44 | 200 | 800 | 650 | 1.6 | 2×22 | 500 | 89 | 40.17 |
SJ-44 | 200 | 800 | 650 | 1.6 | 2×22 | 500 | 89 | 52.08 |
DSJ65/30/2×55 | 300 | 1300 | 650 | 2.5 | 2×55 | 500 | 108 | 74.28 |
DSJ80/20/40 | 200 | 350 | 800 | 2 | 40 | 450 | 89 | 26.28 |
DSJ80/40/55 | 300 | 300 | 800 | 2 | 55 | 450 | 108 | 24.54 |
DSP1040/800 | 400 | 1000 | 800 | 2 | 90 | 630 | 108 | 78.38 |
SD-80 | 400 | 600 | 800 | 2 | 2×40 | 500 | 89 | 43.46 |
SJ-80 | 400 | 600 | 800 | 2 | 2×40 | 500 | 89 | 48.59 |
DSJ80/40/2×55 | 400 | 300 | 800 | 2 | 2×55 | 500 | 108 | 39.26 |
DSJ100/63/2×125 | 500 | 1000 | 1000 | 2 | 2×125 | 630 | 108 | 75 |
DSP1063/1000 | 630 | 1000 | 1000 | 2 | 125 | 630 | 108 | 95 |
SDJ-150 | 630 | 700 | 1000 | 2 | 2×75 | 630 | 108 | 85.33 |
DSJ100/63/75 | 630 | 1000 | 1000 | 2 | 75 | 630 | 108 | |
DSP1060/1000 | 630 | 1000 | 1000 | 2 | 75 | 630 | 108 | 91.5 |
DSJ100/63/2×125 | 630 | 1200 | 1000 | 2 | 2×125 | 630 | 108 | 125.93 |
DSJ100/63/2×125 | 630 | 1800 | 1000 | 2 | 2×125 | 630 | 108 | 119.63 |
DSJ100/63/2×125 | 630 | 1000 | 1000 | 2 | 2×125 | 630 | 108 | 133.17 |
DSJ100/70/2×125 | 700 | 1000 | 1000 | 2.5 | 2×125 | 630 | 108 | 78.6 |
DSL100/70/160 | 700 | 1200 | 1000 | 2 | 160 | 630 | 108 | 114.12 |
DSJ100/75/2×160 | 750 | 1400 | 1000 | 2.5 | 2×160 | 630 | 108 | 99.66 |
DSP1080/1000 | 800 | 1000 | 1000 | 2.5 | 160 | 630 | 108 | 93.5 |
DSP1080/1000X | 800 | 650 | 1000 | 2.5 | 160 | 630 | 108 | 76.24 |
SSJ1000/160 | 800 | 1000 | 1000 | 2.5 | 160 | 630 | 108 | 186.62 |
DSJ1080/1000 | 800 | 1000 | 1000 | 2.5 | 160 | 630 | 108 | 93.5 |
DSJ100/80/160 | 800 | 1000 | 1000 | 3.15 | 160 | 630 | 108 | 86.4 |
DSJ1080/1000 | 800 | 1000 | 1000 | 2.5 | 160 | 630 | 108 | 96.04 |
DSJ100/80/2×160 | 800 | 1000 | 1000 | 2.5 | 2×160 | 630 | 108 | 150.95 |
DSJ100/80/200 | 800 | 1200 | 1000 | 2.5 | 200 | 800 | 108 | 100.45 |
DST100/90/2×250 | 900 | 860 | 1000 | 2.5 | 2×250 | 800 | 133 | 88.49 |
DSJ100/90/2×110 | 900 | 1000 | 1000 | 2.5 | 2×110 | 630 | 108 | 75.52 |
DSJ120/80/3/3×315 | 800 | 2000 | 1000 | 3.5 | 3×315 | 830 | 133 | 74.95 |
SSJ1200/2×200 | 900 | 1000 | 1000 | 2.5 | 2×200 | 830 | 133 | 132.77 |
DSJ120/90/2/2×200 | 900 | 1000 | 1000 | 2.5 | 2×200 | 830 | 133 | 134.01 |
