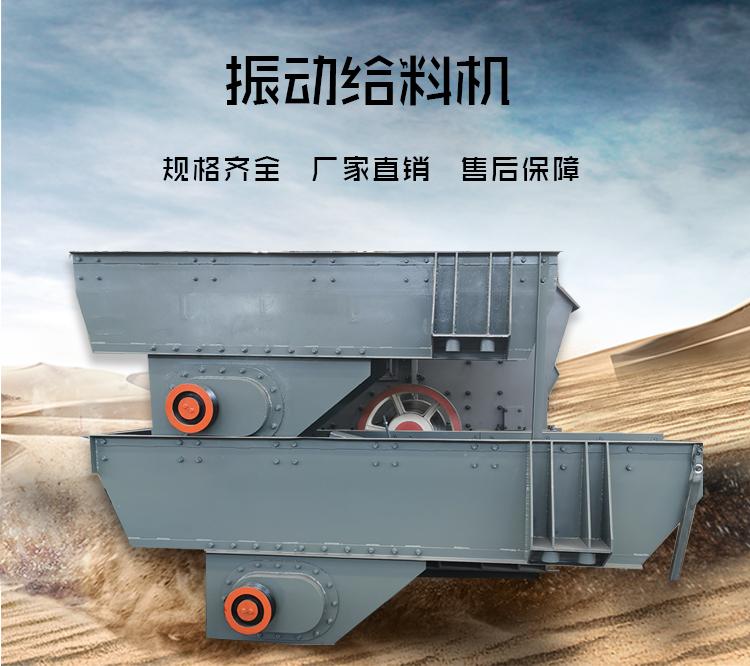

GZG型慣性振動給料機 Vibratory feeder for motor
GZG型自同步慣性振動給料機廣泛用于礦山、冶金、煤炭、建材、輕工、化工、電力、糧食等各行業(yè),用以把塊狀、顆粒狀及粉狀物料從儲料倉或漏斗中均勻連續(xù)或定量地給到受料裝置中去。例如對破碎、選煤、篩分、運輸、包裝機械等給料、配料等。GZG系列給料機為普通槽型,用于無特殊要求的物料給料。
GZG vibratory feeder for motor are widely used in different industries such as mining, metallurgy, coal, building material, light industry, chemical, power and grain. They convey a given amount of block material, granule material and powdery material from the storage silo or hopper to the material receiving device in an even and uninterrupted way. For example, they feed or distribute materials for crushing, coal preparing, screening, transporting, and packaging machines. GZG series feeders adopt ordinary type of chutes which are used for the feeding of materials for which there is no special requirements.
型號規(guī)格 Model | 槽體尺寸 | 生產率 capacity | 給料粒度 Feed size | 振動力 | 功率 Power | 重量 Weight |
0°-10° | ||||||
mm | t/h | mm | kN | kw | t | |
GZG403 | 400×1000×200 | 30-40 | 100 | 2×5 | 2×0.25 | 0.17 |
GZG503 | 500×1000×200 | 60-85 | 150 | 2×5 | 2×0.25 | 0.21 |
GZG633 | 630×1250×250 | 110-150 | 200 | 2×10 | 2×0.5 | 0.34 |
GZG703 | 700×1020×250 | 120-170 | 200 | 2×10 | 2×0.5 | 0.36 |
GZG803 | 800×1500×250 | 160-230 | 250 | 2×16 | 2×0.75 | 0.57 |
GZG903 | 900×1483×250 | 180-250 | 250 | 2×16 | 2×0.75 | 0.61 |
GZG1003 | 1000×1750×250 | 270-380 | 300 | 2×20 | 2×1.1 | 0.76 |
GZG1103 | 1100×1673×250 | 300-420 | 350 | 2×20 | 2×1.1 | 0.82 |
GZG1253 | 1250×2000×315 | 460-650 | 350 | 2×32 | 2×1.5 | 1.07 |
GZG1303 | 1300×2010×300 | 480-670 | 500 | 2×32 | 2×1.5 | 1.12 |
GZG1503 | 1500×2250×300 | 720-1000 | 500 | 2×50 | 2×2.25 | 1.47 |
GZG1603 | 1600×2500×315 | 770-1100 | 500 | 2×50 | 2×2.25 | 1.56 |
GZG1803 | 1800×2325×375 | 900-1200 | 500 | 2×50 | 2×2.25 | 2.34 |
GZG2003 | 2000×3000×400 | 1000-1400 | 500 | 2×50 | 2×2.25 | 2.62 |
GZG705 | 700×1029×250 | 130-180 | 200 | 2×10 | 2×0.7 | 0.38 |
GZG805 | 800×1500×250 | 170-250 | 250 | 2×10 | 2×0.7 | 0.48 |
GZG905 | 900×1438×250 | 200-270 | 250 | 2×10 | 2×0.7 | 0.53 |
GZG1005 | 1000×1750×250 | 290-410 | 300 | 2×20 | 2×1.52 | 0.62 |
GZG1105 | 1100×1673×250 | 320-450 | 300 | 2×20 | 2×1.52 | 0.67 |
GZG1255 | 1250×2000×315 | 500-700 | 250 | 2×20 | 2×1.52 | 0.89 |
GZG1305 | 1300×2040×300 | 620-720 | 330 | 2×30 | 2×2.2 | 1.15 |
GZG1505 | 1500×2250×300 | 780-1080 | 500 | 2×36 | 2×2.2 | 1.31 |
GZG1605 | 1600×2500×315 | 330-1190 | 500 | 2×36 | 2×2.2 | 1.39 |
GZG1805 | 1800×2325×375 | 970-1320 | 500 | 2×50 | 2×3.2 | 2.26 |
GZG1256 | 1250×2000×315 | 500-700 | 350 | 2×30 | 2×2.2 | 1.18 |
GZG1306 | 1300×2040×300 | 520-730 | 350 | 2×30 | 2×2.2 | 1.22 |
GZG1506 | 1500×2250×300 | 780-1080 | 500 | 2×36 | 2×2.2 | 1.55 |
GZG1606 | 1600×2500×315 | 830-1190 | 500 | 2×36 | 2×2.2 | 1.6 |
GZG1806 | 1800×2325×375 | 970-1300 | 500 | 2×75 | 2×5.5 | 3 |
GZG2006 | 2000×3000×400 | 1300-1800 | 500 | 2×75 | 2×5.5 | 3.3 |
